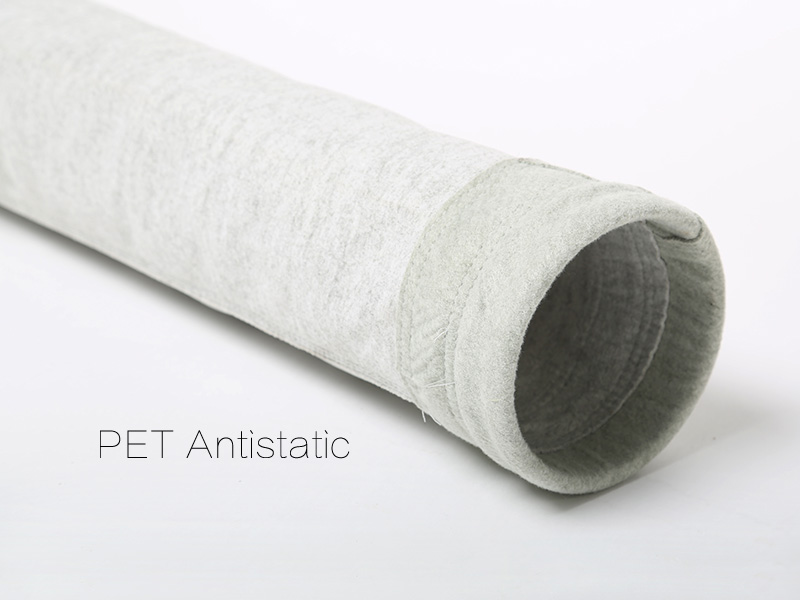

PET antistatic baghouse filter bags
Description
PET antistatic industrial baghouse filter bag is the use of high-tech methods of conductive fiber and polyester fiber blended 6-8 microns in diameter, uniform mixed metal fiber in textile fiber, fabric caused by the fabric appearance and ordinary fabric and indifference, bile has excellent antistatic properties.
Standard specification for PET antistatic industrial baghouse filter bags:
|
Fibre Composition |
polyester staple fibre/Conductive fiber |
|
|
Scrim Composition |
Polyester filament |
|
|
Weight |
500 |
g/m2 |
|
Thickness |
1.9 |
mm |
|
Mean Air Permeability |
9-12 |
m3/m2/[email protected] |
|
Breaking Strength-CD (warp) |
≥1000 |
N/5x20cm |
|
Breaking Strength-MD (weft) |
≥1300 |
N/5x20cm |
|
Breaking Elongation-CD |
<30 |
% |
|
Breaking EIongation-MD |
<50 |
% |
|
Surface Resistance |
<1010 |
Ω |
|
Volume Resistance |
<109 |
Ω |
|
Friction Potential |
<500 |
V |
|
Surface Charge Density |
<7 |
μC/m2 |
|
Dry Shrinkage-CD |
< 1 |
% |
|
Dry Shrinkage-MD |
< 1 |
% |
|
Recommended Continous Operating Temperature |
130 |
°C |
|
Recommended Short-term Operating Temperature |
150 |
°C |
|
Finishing |
Singeing, calendering, heat setting treatment |
|
